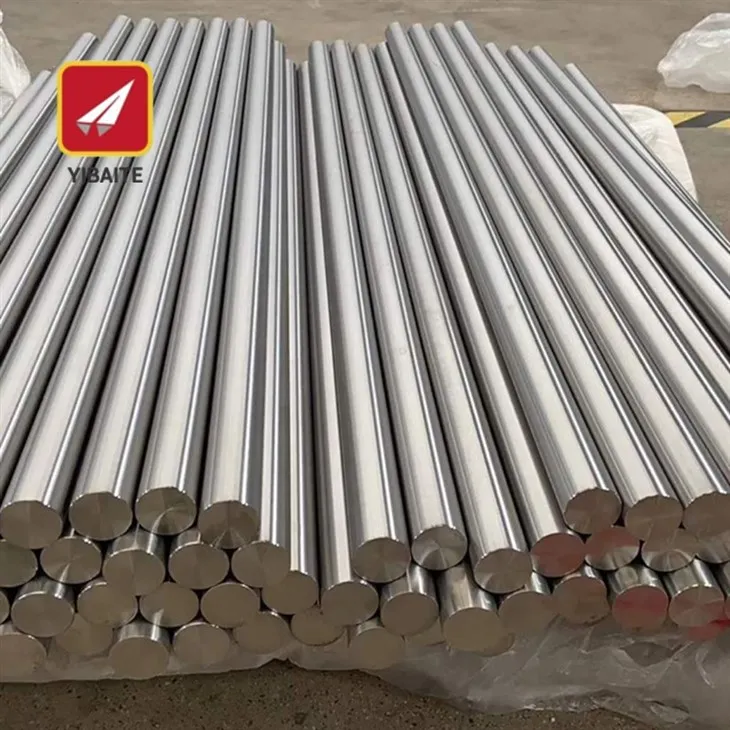

High Precision Gr2 / TA2 Commercially Pure Titanium Bar, Polished Titanium Alloy Rod
Baoji Yibaite New Materials Technology Co., Ltd. specializes in supplying Grade 2/TA2 industrial pure titanium round bars and rods (GR2). The company is located in "China Titanium Valley" - Baoji, and is a high-tech enterprise dedicated to the processing and sales of titanium alloys.
GR2 is widely recognized as the "workhorse" of the industrial pure titanium family (typically ≥99.2% titanium), offering an optimal balance of moderate strength, excellent ductility, and superior weldability. This material exhibits exceptional corrosion resistance in highly oxidizing and mildly reducing environments, along with outstanding CNC machining performance and biocompatibility. Our titanium bars are the preferred materials for chemical processing components, marine fasteners, pump shafts, valves, power generation equipment, and medical implants.
Products Description
Optimal strength & ductility
- Titanium purity is ≥ 99.2% with a perfectly balanced oxygen content.
- Tensile strength ≥ 345 MPa (significantly higher than Gr1), providing excellent load-bearing capacity while maintaining good elongation(≥ 20%)and formability.
Outstanding corrosion resistance
- Exceptional resistance to seawater, marine atmospheres, wet chlorides, and aggressive organic acids.
- Globally recognized as the standard raw material for manufacturing valves, pumps, and fluid control components in highly corrosive chemical environments.
Superior strength-to-weight ratio
- With a density of only 4.51 g/cm³ (about 60% of steel), it offers an exceptional strength-to-weight ratio.
- Ideal for upgrading heavy steel fasteners and mechanical parts into lightweight, fatigue-resistant titanium components.
Excellent machinability & weldability
- Highly adaptable to high-speed CNC turning, milling, and thread rolling without excessive tool wear.
- Exhibits excellent weldability via TIG and MIG, ensuring seamless, leak-free integration into industrial piping and flange assemblies.
Medical & food grade compliance
- Non-toxic, non-magnetic, and highly biocompatible.
- Complies with ASTM F67 / ISO 5832-2 and ISO 13485 standards.
- Widely specified for medical implants, bone screws, dental implants, pharmaceutical agitators, and sanitary food equipment.
.
Certified & reliable quality
- Manufactured in our 2,100 m² modern plant in "China Titanium Valley" with strict adherence to ISO 9001.
- Fully compliant with ASTM B348 / ASME SB348 standards; 100% Ultrasonic Tested (UT) to guarantee a flawless internal structure free of cracks, pores, or defects.
Specifications
| Material Grade | Standard | Diameter | Length | Surface Treatment | Process |
| GR2 (Grade 2 / TA2, UNS R50400) | ASTM B265, ASME SB265, ASTM F67 (Medical), AMS 4911, JIS H4600 TP340C | 3.0mm – 400mm | 100mm – 6000mm (Support customized cutting / cut-to-size) | Pickled (Acid cleaning), Sandblasted, Peeled (Rough turned), Polished / Ground (Bright surface) | Forged (for large diameter), Hot rolled, Cold drawn (for fine wires/rods) |
Application Fields
GR2 titanium bars and rods are widely applied in:
-
Chemical and petrochemical processing: High-strength bolts and nuts, valve stems, pump shafts, and chemical agitators.
-
Power Generation and Industrial Systems: Heavy-duty support rods, condenser tube sheets (for machining), and power plant turbine blades.
-
Marine Engineering and Seawater Desalination: Medical and Pharmaceutical Equipment
-
Aerospace and Precision Manufacturing: Aircraft engine fasteners, structural rods, aerospace brackets, and high-precision CNC machined parts.
-
New Energy and Electrochemistry: Electrode support rods, battery current collectors, and raw materials for high-purity sputtering targets.
-
Medical and Pharmaceutical Equipment:Dental implants, orthopedic screws, bone fixation devices, and pharmaceutical mixing shafts.
Source factory of China Titanium Valley
Complete certifications
Strict quality control system
One-stop customized service
Global delivery service
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional and experienced titanium products manufacturer in China.
Q: Can you provide customized processing?
A: Yes. Baoji Yibaite supports cutting, bending, stamping, CNC machining, and deep drawing according to customer drawings.
Q: What is the delivery time?
A: Regular size in stock within 3–7 days; customized production about 10–15 working days.
Q: What standards do your GR2 titanium bars/rods comply with?
A: Our GR2 titanium bars and rods strictly comply with international standards including ASTM B348, ASME SB348, ASTM F67 (for medical applications), AMS 4928, and JIS H4600. We provide a full Material Test Certificate (MTC) compliant with EN 10204 3.1, which includes traceable chemical composition, mechanical property testing, and 100% Ultrasonic Test (UT) results to guarantee a flawless internal structure.
Q: What surface finishes are available?
A: Pickled surface, polished, brushed, sandblasted, and mirror finish are all optional.
