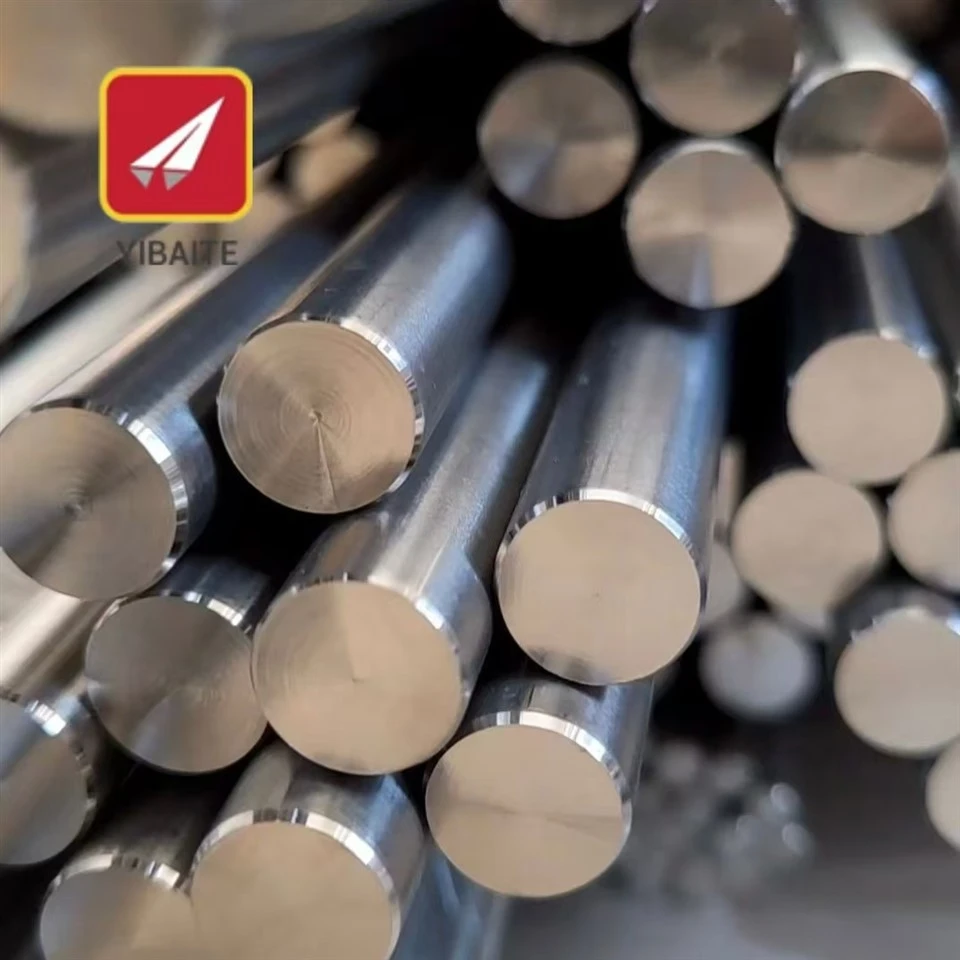

Product Introduction
GR5 Titanium Round Bar (Ti-6Al-4V, also known as TC4) is the most widely used α+β titanium alloy. Manufactured in Baoji - China Titanium Valley by Baoji Yibaite New Material. It features outstanding strength-to-weight ratio, lightweight, excellent corrosion resistance and stable performance under high & low temperature. Available as forged bar, ground bar and precision polished bar. Custom cutting & CNC blank service available. Widely applied in aerospace, offshore oil, medical devices and precision machinery.
Specifications
- Grade: GR5 / Ti-6Al-4V (TC4)
- Standards: ASTM B348, AMS4928; Medical version meets ASTM F136
- Diameter: Φ3mm ~ Φ200mm, larger forged billet available upon request
- Length: 500–4000mm, custom cut-to-length
- Supply condition: Annealed (M), Hot rolled (R), Ground, Mirror polished
- Tolerance: h6/h7/h8/h9, tight tolerance optional
- Surface: Forged black surface, turned, ground, polished
- Density: 4.43 g/cm³
Chemical Composition (wt%, ASTM B348)
Ti balance; Al:5.5–6.75; V:3.5–4.5; Fe ≤0.30; O ≤0.20; C ≤0.08; N ≤0.05; H ≤0.015; Each other impurity ≤0.10, total ≤0.40
Mechanical Properties (Annealed)
- Tensile Strength ≥895 MPa
- Yield Strength ≥828 MPa
- Elongation ≥10%
- Service temperature: continuous ≤400℃, retains toughness down to -200℃
Product Advantages
Superior strength-to-weight ratio: Significantly reduce the weight in aviation, racing and sports components, while enhancing load capacity and endurance.
Excellent corrosion resistance:Resistant to weak acids, weak alkalis, oil, gas, and without rusting. Suitable for harsh working conditions in the marine, oil and gas, and chemical industries.
Stable performance at high & low temperature : High temperature tolerance, no cracking at low temperatures
Great fatigue resistance: The grains are uniform and resistant to alternating loads.
Good machinability & weldability: It can perform CNC turning, milling, drilling, bending and welding. The consistency of the finished products is excellent.
Strict batch inspection: 100% UT ultrasonic test & spectrum analysis available, MTC material test certificate supplied.
Direct factory supply from Baoji China Titanium Valley. In stock for standard sizes, support sample order & bulk OEM.
Applications
Aerospace structural parts, landing gear components, fasteners
01
offshore & oilfield equipment, seawater desalination
02
medical implants & surgical instruments (medical grade)
03
racing parts, hydraulic components, mechanical shafts, 3D printing billets, chemical & sports equipment.
04

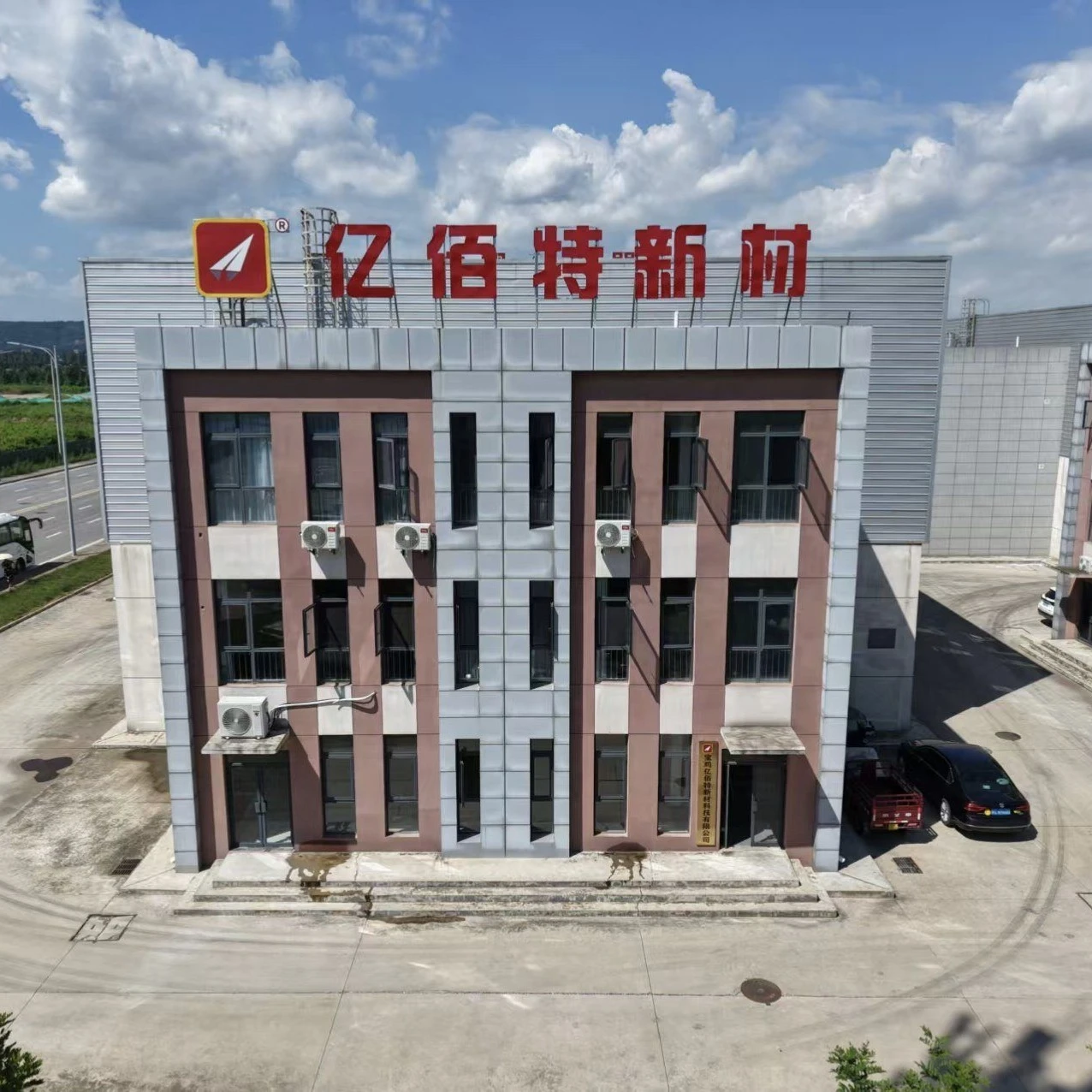

About Baoji Yibaite New Materials Technology Co., Ltd
Located in Baoji, China's Titanium Valley. We specialize in titanium & titanium alloy bars, plates, forgings, targets, and medical precision titanium components. Integrated forging, hot rolling, precision grinding, and cutting service. Third-party inspection acceptable. Export packaging for sea shipment. Other products: GR1 GR2 pure titanium bar, GR23 ELI titanium bar, titanium disc, titanium ring.
