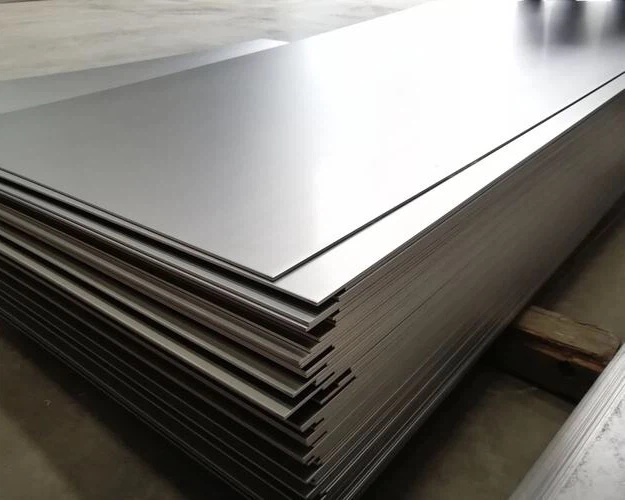

In recent years, as the power industry has increasingly demanded higher efficiency, reliability and longer lifespan of equipment, titanium alloy plates, with their high specific strength, excellent corrosion resistance and outstanding fatigue performance, have gradually replaced traditional materials in core components such as steam turbine blades and generator guard rings, becoming a key force driving the technological upgrade of the industry. This article will, based on specific application scenarios, analyze how titanium alloy plates solve the "material bottleneck" of power equipment.

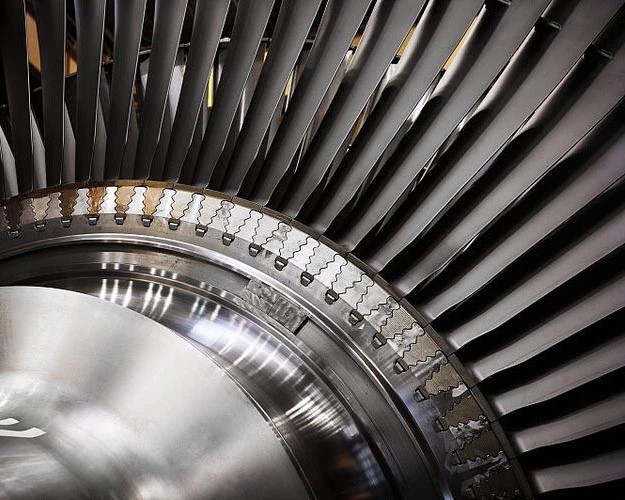

Low-pressure blades of steam turbines: 40% weight reduction, enhanced corrosion resistance
Traditional challenges
The last few stages of the low-pressure section of steam turbines are constantly exposed to high temperatures, high humidity, and corrosive media (such as chloride ions from condenser leakage, sulfides). Traditional martensitic chromium stainless steel (such as Cr13 steel) blades, due to their high density (approximately 7.85g/cm³), have to withstand significant centrifugal forces during high-speed rotation, which can lead to fatigue fractures at the root of the blades; moreover, their resistance to pitting and crevice corrosion is insufficient, and the corrosion sites can easily become crack sources, significantly shortening the blade lifespan.
Titanium alloy solution
1. Lightweight and stress reduction: Titanium alloy has a density of only 4.51g/cm³ (such as Ti-6Al-4V alloy), reducing the blade weight by 40% and significantly reducing the centrifugal force at the blade root, increasing the fatigue life by more than 3 times;
2. Corrosion resistance breakthrough: The surface of titanium alloy forms a dense oxide film, providing 5-8 times the corrosion resistance of Cr13 steel to salt-containing steam, completely eliminating the risk of pitting and crevice corrosion;
3. Stable fatigue performance: In air, the fatigue strength of Ti-6Al-4V alloy is 30% higher than that of Cr13 steel; in a 3.5% NaCl solution, the fatigue strength of Cr13 steel decreases by 60%-80%, while the performance of titanium alloy is almost unaffected.
Application results
In a power plant renovation project, replacing the last two blades of the low-pressure section with titanium alloys increased the blade lifespan from 3 years to 8 years, reduced maintenance costs by 65%, and improved the unit efficiency by 1.2%.

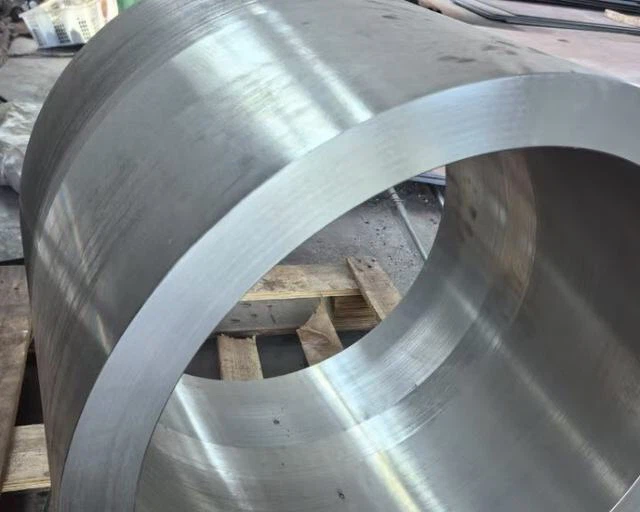

Guard rings of generators: Non-magnetic, high strength, stress corrosion resistance
Traditional material limitations
Generator guard rings need to withstand the huge centrifugal force generated by the rotor's high-speed rotation, as well as resist stress corrosion cracking (SCC) in water media. The current mainstream material, austenitic Fe-Mn-Cr alloy, although having certain strength, has two major drawbacks:
1. Stress corrosion sensitivity: It is prone to SCC in chloride ion-containing environments, causing sudden blade fractures;
2. Magnetic interference: The residual magnetism of the alloy may affect the electromagnetic performance of the generator, requiring additional demagnetization treatment.
Advantages of titanium alloy
1. No magnetism: Titanium alloy is a non-ferromagnetic material and will not interfere with the electric generator's magnetic field;
2. Super high strength and toughness: The tensile strength of Ti-6Al-4V alloy is over 1000 MPa, and the fracture toughness (KIC) is ≥ 60 MPa·m¹/², far exceeding that of Fe-Mn-Cr alloy;
3. Resistance to stress corrosion: For example, in a 3.5% NaCl solution, the corrosion critical stress (σth) of the titanium alloy guard ring is 2.5 times that of the Fe-Mn-Cr alloy, ensuring long-term safe operation.
Application Case
In the upgrade project of the generator guard rings of a hydropower station, after using titanium alloy guard rings, the equipment has run continuously for 5 years without any cracks, while the original Fe-Mn-Cr alloy guard rings needed to be replaced on average every 2 years, resulting in a 70% reduction in overall costs.
Technical and Economic Benefits: From "High-End Replacement" to "Full Industry Promotion"
Although the unit price of titanium alloy is higher than that of stainless steel, its significant cost advantages throughout the entire life cycle are:
Extended lifespan: The lifespan of titanium alloy components is 3-5 times that of steel, reducing the cost of frequent replacements;
Efficiency improvement: Lightweighting reduces energy consumption. For example, after reducing the weight of steam turbine blades, the efficiency of the unit increases by 0.8%-1.5%;
Maintenance simplification: Corrosion resistance reduces downtime for maintenance, and the annual operating time can be increased by 200-300 hours.
According to statistics from the China Power Equipment Materials Association, after using titanium alloy, a single large-scale power generation unit (1000MW level) can save over 20 million yuan in 10 years of operation, with an investment return rate of 180%.
Future Outlook: Acceleration of "Electrification" of Titanium Alloys
With the decline in the cost of titanium materials (the domestic price of titanium plates has decreased by 35% in the past five years) and the maturity of processing technologies (such as precision rolling and 3D printing), the application of titanium alloys in the power industry is expanding from high-end units to conventional units. It is expected that by 2030, the market share of titanium blades in steam turbines in China will exceed 40%, and the titanium alloyization rate of generator guard rings will reach 60%, promoting the comprehensive upgrade of power equipment towards "high efficiency, low carbon, and long lifespan".
The successful application of titanium alloy plates in the power industry is a perfect combination of material science and engineering practice. From solving the "corrosion-failure" problem of steam turbine blades to breaking through the "stress corrosion" bottleneck of generator guard rings, titanium alloys are reshaping the core competitiveness of power equipment with their three major advantages of "lightweighting, corrosion resistance, and high performance", providing key material support for global energy transformation.
