Titanium alloy forgings are high-performance components formed through a process of high-temperature and high-pressure forging on titanium and titanium alloy billets, eliminating internal porosity and voids, and refining the crystal structure. They possess four core advantages: high specific strength, resistance to extreme corrosion, fatigue resistance, and high temperature resistance. They are the preferred materials for core load-bearing components in cutting-edge fields such as aerospace, medical, marine engineering, and petrochemicals.
Core Advantages
High specific strength and lightweight
Compact tissue, strong and resistant to fatigue
Extremely resistant to corrosion, maintaining long-term stability in extreme environments
Biocompatible + Heat-resistant
Materials and types
GR1, GR2 Industrial pure titanium: highly corrosion-resistant and with good plasticity, suitable for chemical and marine non-load-bearing components.
Titanium alloys: Ti-6Al-4V/GR5, comprehensive strength, toughness, and fatigue resistance, they are the main materials for aerospace and medical fields.
Customized materials: TA15, TC11, etc., suitable for high temperature and high strength working conditions such as .

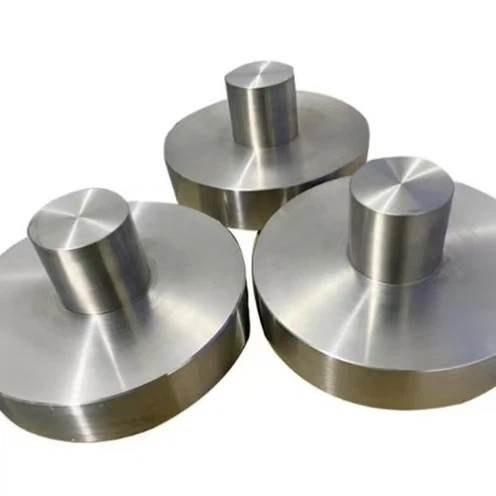

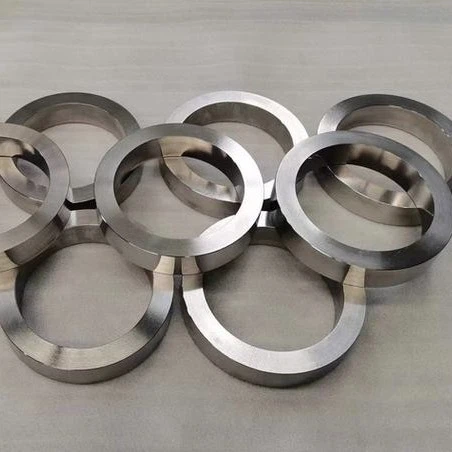

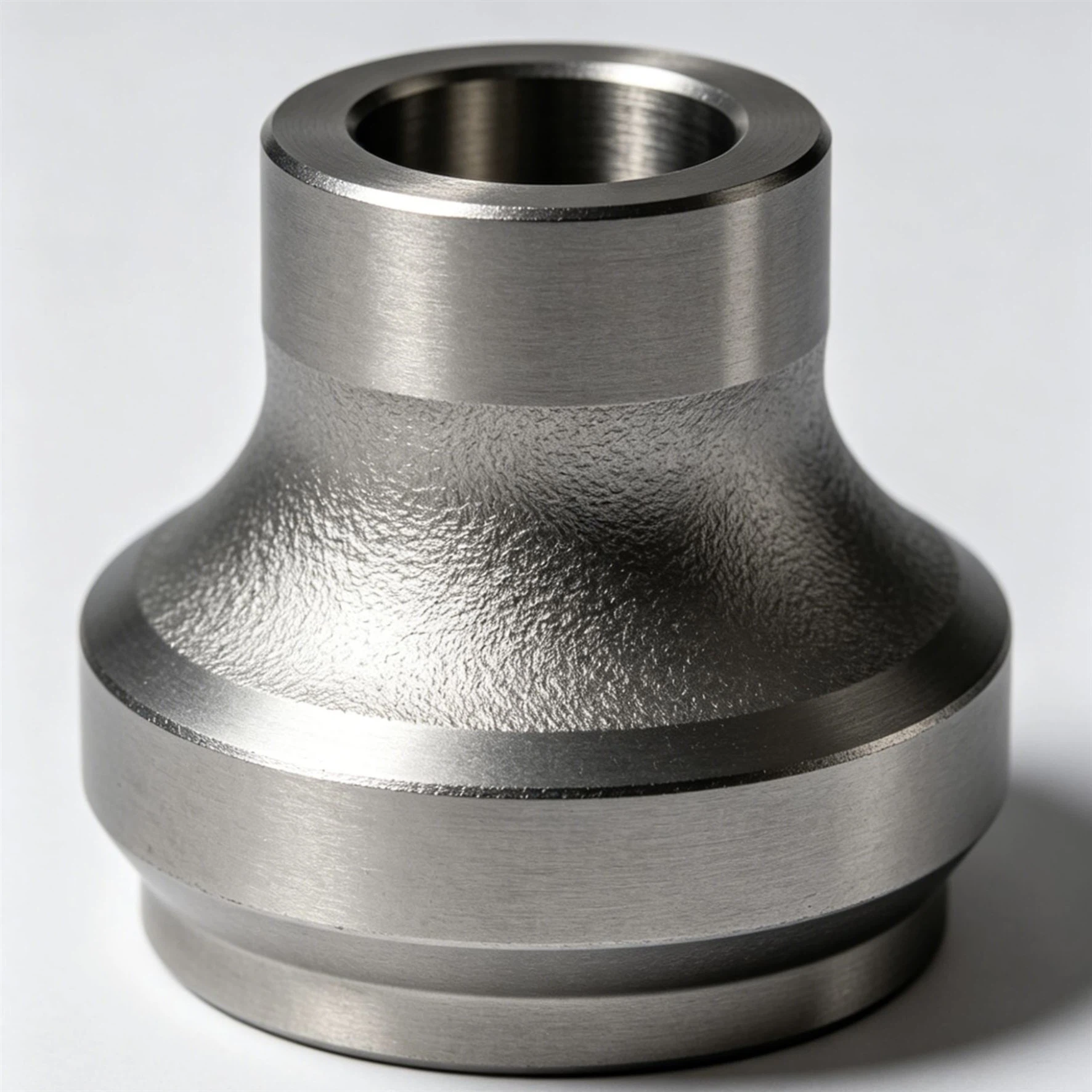

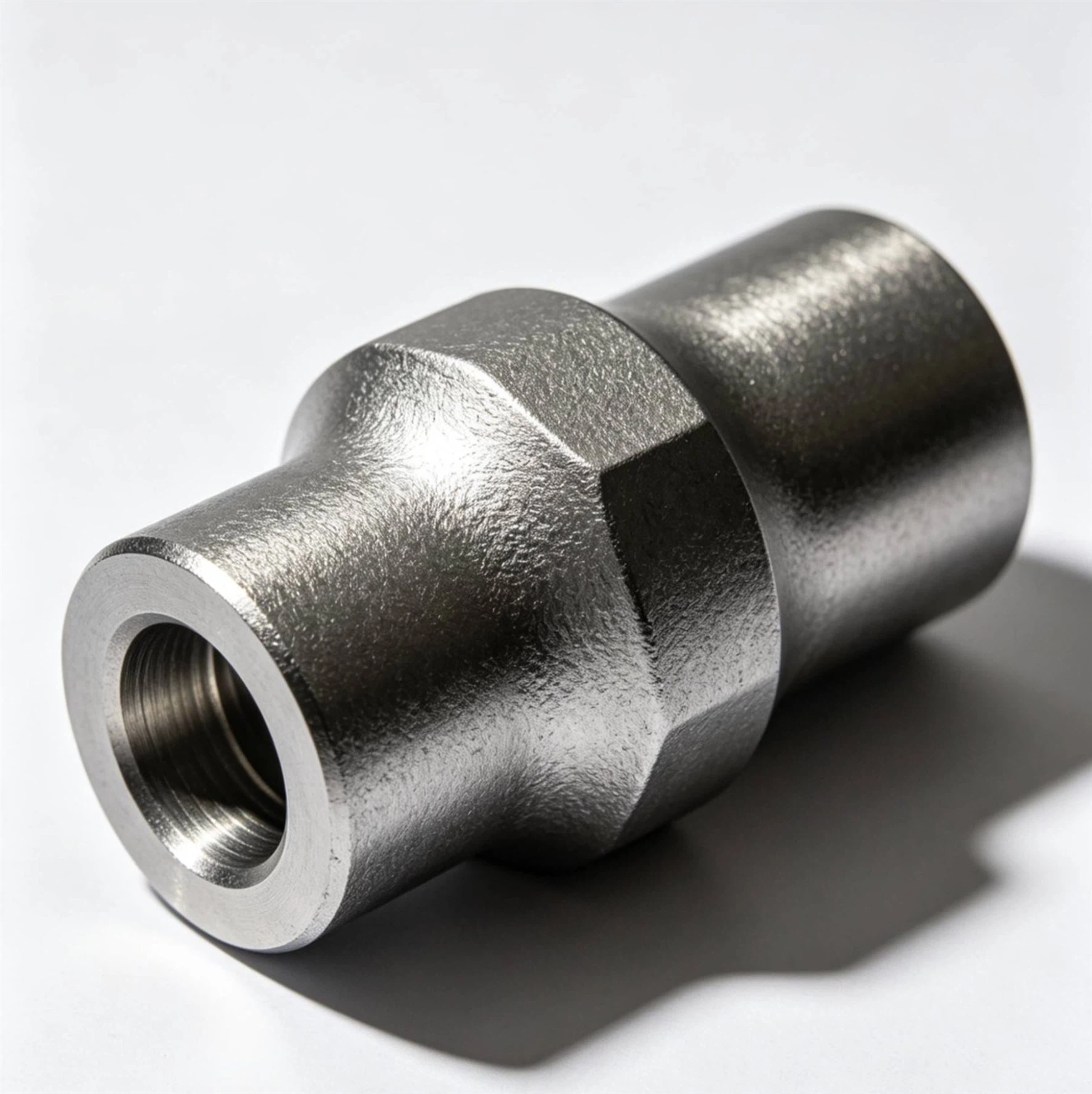

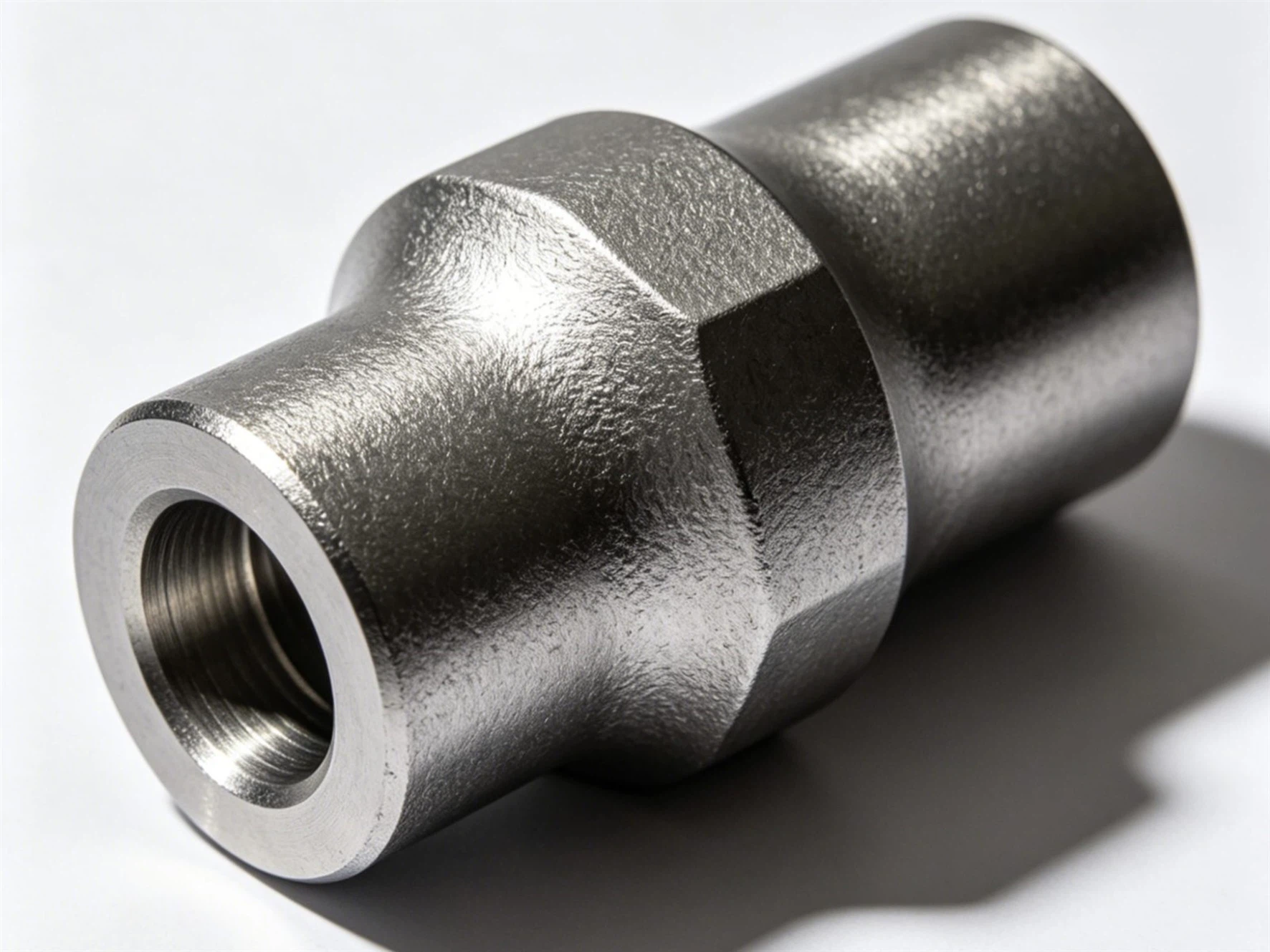

Type: Titanium sheets, titanium rings, titanium flanges, titanium shafts, disc parts, special-shaped forgings, etc.
Size: Diameter Φ20mm – Φ1500mm, Thickness 10mm – 500mm; Customized sizes and tolerances (±0.5mm) are supported.
Supply Condition: Annealed (M), hot worked (R), surface treatment (polished / sandblasted / acid washed); they can be finely processed to meet drawing requirements.
Exquisite craftsmanship and quality control
Raw material selection: we choose high-purity titanium ingots and rods as the raw materials. Spectral analysis and flaw detection are used to ensure that the chemical composition meets the standards. The purity is higher than 99.95%.
Precision forging: Heating in a vacuum or inert environment, using a 3,000-ton rapid forging hydraulic machine production line, with die forging / free forging processes, temperature control by finite element simulation (β phase transformation point ± 50℃), one-pass forming, reducing machining allowances.
Heat treatment optimization: we use annealing or aging treatment to release titanium forgings' internal stress, balance strength and toughness, and stabilize the structure performance.
Full-process inspection: we carry out more than 20 items of tests, such as ultrasonic testing (UT), mechanical properties (tensile/ impact/fatigue), dimensional accuracy, surface quality, etc. for , in accordance with GB/T 16598 and ASTM B381 standards. We assure delivery with zero defects.
Core application fields and specific scenarios
Aerospace
Applied to engine compressor discs, turbine shafts, fuselage frame beams, landing gear components, and rocket fuel tanks, it can achieve lightweight + high reliability + anti-fatigue properties
01
Medical Health
Applied in scenarios such as artificial hip and knee joint components, spinal bone pins, orthopedic implant plates, surgical instruments, etc., to achieve biocompatibility + non-toxicity + high strength and toughness.
02
Marine Engineering
Suitable for applications such as the pressure-resistant shells of deep-sea submersibles, the propeller shafts of ships, the connection components of offshore platforms, the pipelines and heat exchangers of seawater desalination equipment, etc., to achieve resistance to seawater corrosion and high-pressure tolerance.
03
Petrochemical industry
Applied in scenarios such as high-pressure flanges, sealing rings, valve bodies, reactor components, heat exchange tube plates, etc.; In the strong acid, strong alkali, high-temperature and high-pressure working conditions of petroleum refining and chemical synthesis, it can achieve resistance to acid and alkali + high-temperature and high-pressure + long service life.
04
New Energy / High-End Equipment
Applied in scenarios such as bipolar plates for hydrogen fuel cells, structural components for precision instruments, core components of smart locks, and connection parts for photovoltaic equipment, achieving lightweighting, conductivity, and corrosion resistance.
05
Baoji Yibaite Manufacturing Strength

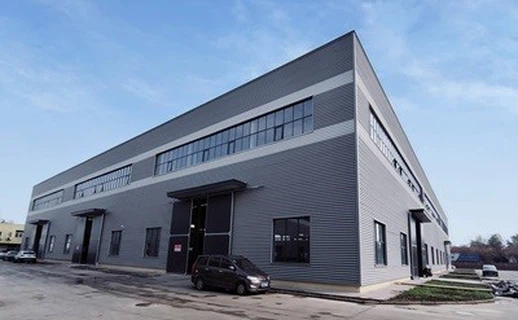

Baoji Yibaite has been deeply engaged in titanium material processing for many years, focusing on the research and production of high-quality titanium alloy forgings. The company takes advantage of the cluster advantages of "China Titanium Valley", possessing a complete industrial chain processing capability, and can achieve one-stop delivery from raw material melting, forging, heat treatment to fine processing, surface treatment, and inspection. It can customize non-standard special-shaped forgings according to customer needs, suitable for different working conditions. The products have been exported to multiple countries and have obtained ISO 9001 quality certification and ISO 13485 certification, with quality benchmarking against international advanced standards.
Support customization of materials, dimensions, tolerances and surface treatments according to drawings/samples
Provide complete materials certificates, flaw detection reports, mechanical performance reports, etc.
Quick prototyping, batch production, and on-time delivery, with full technical support throughout the process.
