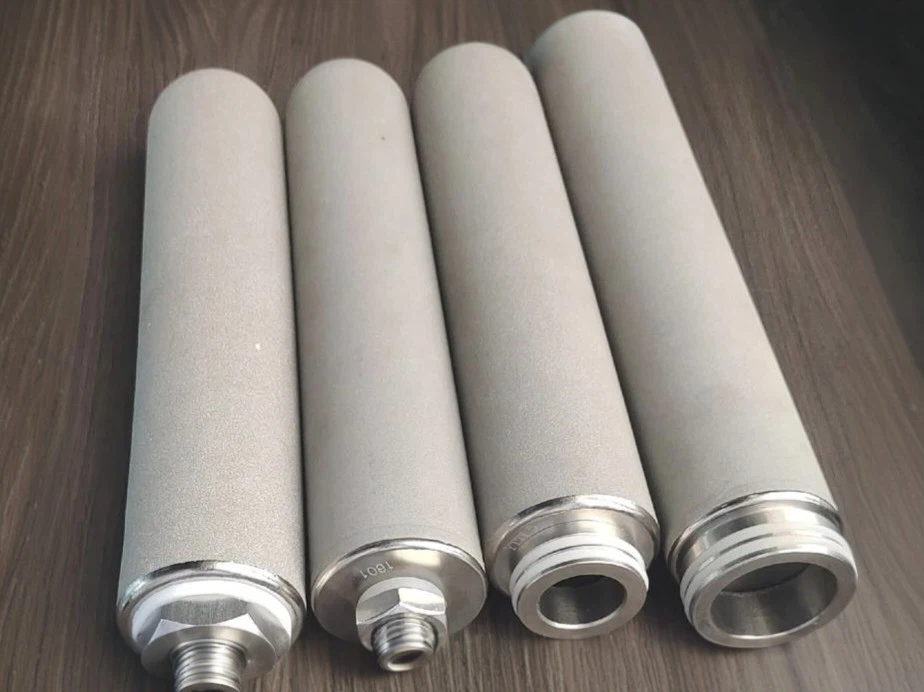

Baoji Yibaite titanium filter elements are made of high-purity titanium powder through precision sintering. With uniform porous structure and stable filtration performance, they become the preferred products for harsh filtration scenarios in various industries, providing efficient, reliable and economical solutions for liquid and gas separation.
Core Advantages
Exceptional Corrosion Resistance
Inert titanium material resists acids, alkalis, oxidants, and most corrosive media, operating stably across pH 2–12. No need to worry about material corrosion and damage, suitable for harsh corrosive working conditions such as chemical industry, pharmaceutical industry and marine industry.
High Temperature Stability
It can operate continuously up to 280℃ in wet state and 500℃ in dry state. The pore structure remains stable under extreme temperature conditions, without deformation or failure, suitable for steam filtration, high-temperature fluid treatment and other scenarios.
Zero Secondary Contamination
No particle shedding or material dissolution, fully compliant with FDA & GMP standards, and no pollution to the filtered medium. It can be safely used in food, beverage, pharmaceutical and other industries with high hygiene requirements to ensure product purity.
High Filtration Efficiency
Uniform and narrow pore distribution, customizable filtration precision (0.1–100μm), porosity of 35–45%. While ensuring precise retention of impurities, it achieves low differential pressure and high flow rate, improving filtration efficiency and reducing operating energy consumption.
Reusable & Cost-Effective
It can be regenerated online by backwashing, ultrasonic cleaning and other methods, no need for frequent replacement. The service life is 5–8 times that of membrane filters, and titanium material can be 100% recycled, greatly reducing the filtration cost of enterprises.
Robust Mechanical Performance
Compressive strength up to 0.5–1.5MPa, can withstand pressure filtration, vacuum filtration and other working conditions. Seamless structure design, customizable length (up to 1000mm), suitable for different equipment installation needs, not easy to damage.
Technical Specifications
| Parameter | Details |
| Material | High-purity titanium powder (TA1/TA2) |
| Filtration Precision | 0.1 μm–100 μm (customizable) |
| Dimensions | Diameter: φ8–φ100 mm;Length: 125–1000 mm |
| Porosity | 35–45% |
| Operating Temp. | ≤280°C (wet);≤500°C (dry) |
| Working Pressure | ≤0.6 MPa |
| Interface | 222/226/227, threaded (M20/M30), flat, socket |
Applications
Pharmaceutical
They are usually applied in sterile filtration, carbon removal, and final filtration for injections, oral liquids, and eye drops.
Food & Beverage
They are applied in clarification and sterilization of wine, juice, edible oil, and syrup.
Chemical
They are applied in filtration of strong acids, alkalis, organic solvents, and catalyst recovery.
Water Treatment
They are used for RO/EDI pre-filtration, ozone-treated water filtration, and wastewater polishing.
Gas Purification
They are applied in filtration of oil, dust, and moisture removal for compressed air, nitrogen, and hydrogen.
New Energy & Electronics
They are applied in Ultra-pure water and electronic chemical filtration for semiconductors and hydrogen production.
Why Choose Baoji Yibaite?

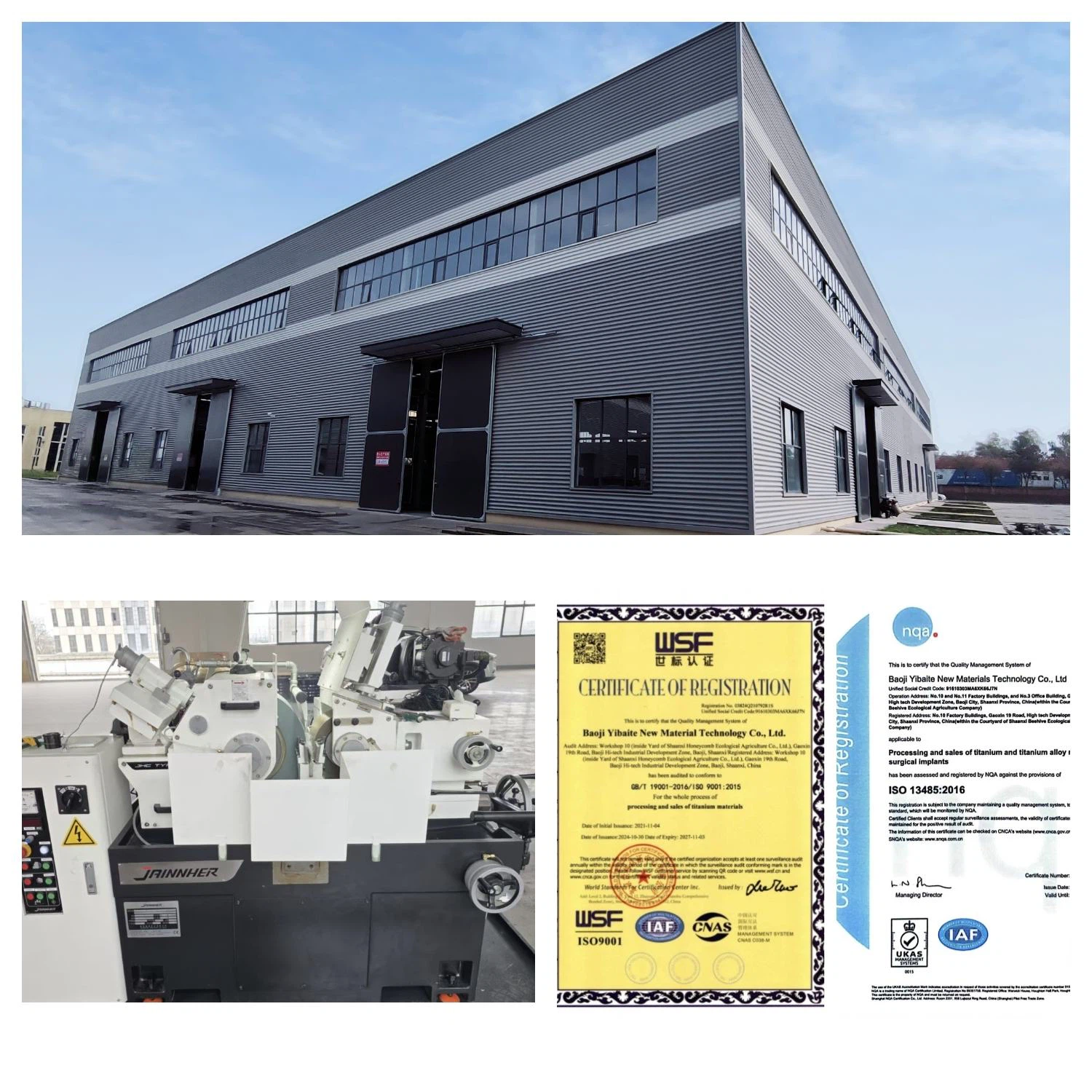

Baoji Yibaite New Materials Technology Co., Ltd. has over 10 years of experience in titanium material research and production, and is dedicated to the in-depth development of titanium filter elements.
Professional Manufacturer
Strict Quality Control
Custom Solutions
Global Supply
For detailed specifications, pricing, or custom solutions, please contact our sales team. We are committed to providing you with high-quality titanium filter products and professional technical service.
