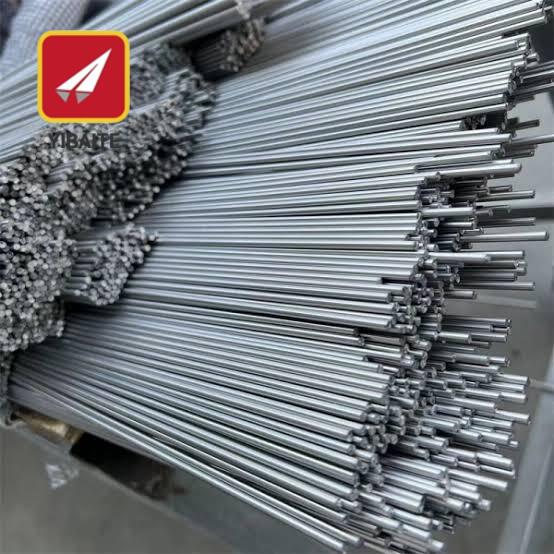

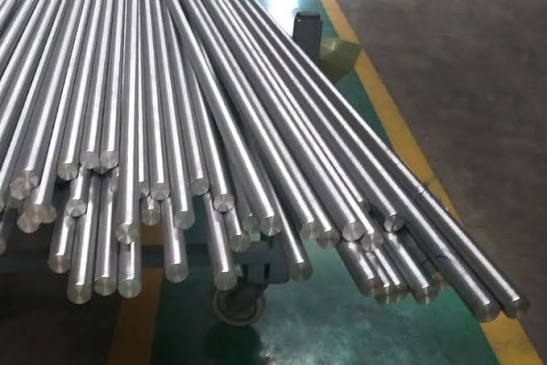

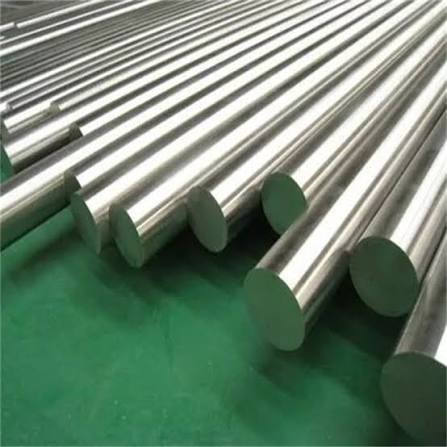

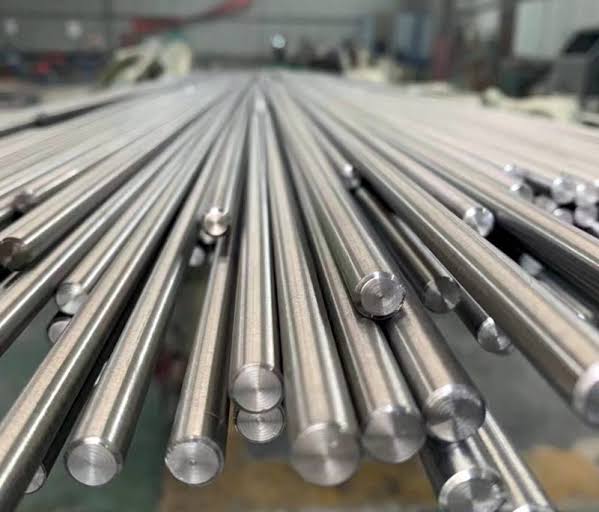

Ti6Al4V Titanium Alloy Rod
Overview
Ti6Al4V (Grade 5) is an alpha-beta titanium alloy. It accounts for more than half of all titanium used worldwide. The alloy has a density of 4.43 g/cm³, roughly 56% that of steel, while its tensile strength ranges from 860 to 1100 MPa depending on heat treatment. It also resists corrosion in most physiological and industrial environments and is biocompatible per ISO 10993. These properties make it suitable for applications where steel introduces excessive weight and aluminum does not provide adequate strength.
Manufactured in Baoji - China's Titanium Valley, our Ti6Al4V titanium rods are produced from 100% premium sponge titanium, subjected to precision vacuum arc remelting (VAR) and rigorous centerless grinding. Whether you require AMS 4928 for aerospace structures or ASTM F136 for medical implants, we supply fully traceable, high-precision stock tailored to your exact drawings.
860 MPa
Tensile Min.
114 GPa
Elastic Modulus
795 MPa
Yield Strength
Ti-6Al-4V
6% Al, 4% V, extra low interstitials
.
Ti-6Al-4V vs. stainless steel - when does titanium make sense?
When you need weight savings (40% lighter), corrosion resistance (seawater, chemicals), or temperature capability (315°C vs 200°C for SS). Ti-6Al-4V costs 3–5× more per kg than 316L, but the total cost of ownership - lighter structures, zero corrosion replacement, longer service life - often favors titanium in aerospace, marine, chemical, and high-performance applications.
Final Testing & Certification
100% ultrasonic inspection. Tensile, hardness, microstructure, and dimensional verification per lot. EN 10204 Type 3.1 MTC with every shipment. Third-party inspection available on request.
Core Features
Strength-to-Weight Champion
At 895 MPa UTS and 4.43 g/cm³, Ti-6Al-4V delivers the highest specific strength of any common metal. Swap steel components for 40% weight savings - or swap aluminum for 60% more strength at the same section size.
High-Temperature Stability
Continuous service to 315°C (600°F), intermittent to 425°C. Maintains strength and resists creep where aluminum softens and steel becomes heavy. Ideal for engine-adjacent structures and exhaust systems.
Corrosion Immunity
Passive TiO₂ film resists seawater, chlorides, oxidizing acids, wet chlorine, and industrial atmospheres. Outlasts stainless steel 5–10× in marine and chemical environments - eliminating replacement costs.
Fatigue Performance
Fatigue limit ~500 MPa at 10⁷ cycles in annealed condition. Excellent fatigue crack growth resistance - especially in beta-annealed condition. Powers turbine blades, landing gear, and rotating components that can never fai
Machinability & Formability
While harder to machine than steel, modern carbide tooling and proper coolant strategy make Ti-6Al-4V highly productive. Annealed condition offers good cold formability for complex geometries and near-net-shape forgings.
Certified Quality & 100% Non-Destructive Inspection
- Baoji Factory Direct: Sourced from high-purity sponge titanium and VAR melted in our 2,100 m² modern mill.
- 100% Flawless Guarantee: Every single bar undergoes 100% Ultrasonic Testing (UT Class A per AMS 2631 / ASTM B348) to guarantee zero internal voids, cracks, or inclusions, complete with an EN 10204 3.1 MTC.
Specifications
| Material Grade | Standard | Diameter Range | Length Range | Surface Finish | Manufacturing Process |
| Ti-6Al-4V (Grade 5 / GR5, UNS R56400) | ASTM B348, ASME SB348, AMS 4928, AMS 4967 | 1.0mm – 200mm (Micro rods to heavy structural bars) | 100 mm – 6,000 mm (Support customized cutting / cut-to-length services) | Centerless Ground, Polished (Bright surface, Ra ≤ 0.8μm), Peeled, Rough Turned, Pickled | Forged (for large diameters), Hot rolled, Cold drawn (for fine rods and high-precision applications) |
Applications
01 - Aerospace & Defense
Jet Engines, Airframes & Fasteners
Compressor blades, turbine disks, structural bulkheads, landing gear components and millions of high-strength fasteners. Ti-6Al-4V has been 'off the shelf' on every major aircraft programme for 60 years.
02 - Automotive & Motorsport
Race-Proven Performance
Valve springs, connecting rods, exhaust components, suspension components etc. Every gram won in F1 and MotoGP means a lap saved.
03 - Marine & Offshore
Seawater-Proof Components
Propeller shafts, heat exchangers, desalting equipment, subsea valves. Immune to seawater corrosion and marine growth.
04 - Chemical & Energy
Aggressive Media Handling
Reactor vessels, heat exchangers, chlor-alkali cells, geothermal wellhead components. Corrodes and wears wet chlorine, oxidizing acids and hot brines that scald stainless steel in months.
05 - Medical (ELI Grade)
Surgical Implants & Devices
Hip/knee replacements, spinal cages, dental fasteners, surgical equipment-in ELI (grade 23) per ASTM F136. See our specific Medical page for implant-grade materials.
06 - Consumer & Sports
Performance Equipment
Golf club heads, bicycle frames, fine-frame glasses, watch cases, luxury objects. Where weight, strength and status converge.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional and experienced titanium products manufacturer in China.
Q: Can you provide customized processing?
A: Yes. Baoji Yibaite supports cutting, bending, stamping, CNC machining, and deep drawing according to customer drawings.
Q: What is the delivery time?
A: Regular size in stock within 3–7 days; customized production about 10–15 working days.
Q: What standards do your Ti-6Al-4V titanium alloy rods comply with?
A: Our Ti-6Al-4V (Grade 5) titanium alloy rods strictly comply with premier aerospace, industrial, and military standards, including AMS 4928, ASTM B348, ASME SB348, MIL-T-9047, and AMS 4967. Every shipment is accompanied by a full EN 10204 3.1 Material Test Certificate (MTC) detailing traceable chemical heat analysis, mechanical property testing, and 100% Ultrasonic Testing (UT) results.
Q: What surface finishes are available?
A: Pickled surface, polished, brushed, sandblasted, and mirror finish are all optional.
